Getting started with a11yviz (R) • a11yviz

library(a11yviz)
library(ggplot2)
library(palmerpenguins)
#>
#> Attaching package: 'palmerpenguins'
#> The following objects are masked from 'package:datasets':
#>
#>     penguins, penguins_raw
penguins <- na.omit(penguins)

dt_show <- function(df) DT::datatable(df,
  extensions = "Buttons",
  options    = list(dom        = "Bfrtip",
                    buttons    = c("copy", "csv", "excel", "pdf"),
                    pageLength = 10,
                    scrollX    = TRUE,
                    autoWidth  = TRUE),
  class      = "compact stripe hover",
  rownames   = FALSE,
  width      = "100%")

Example

p <- ggplot(penguins, aes(flipper_length_mm, body_mass_g, color = species)) +
  geom_point() +
  labs(x = "Flipper length (mm)", y = "Body mass (g)")
p

Audit reveals the gaps

a11y_audit() returns one row per WCAG criterion with a status column. The table below filters to actionable rows (status = "todo" or "ok") — the items where the chart needs human attention.

status	meaning
`ok`	check passes automatically
`todo`	needs user action
`applied`	handled by `theme_a11y()` / `scale_*_a11y()` / `a11y_layout()`
`manual`	requires human review (e.g., reflow at 320 px)
`css`	covered by `a11y_css()` stylesheet
`doc`	document-level check; run `a11y_check_headings()` separately
`n/a`	not applicable to this chart type (e.g., hover on ggplot)

audit_p <- a11y_audit_chart(p)
cat(a11y_audit_summary(audit_p))
#> 3 to do, 0 ok, 3 already handled.
dt_show(a11y_audit_actionable(audit_p))

Two actionable items come back as todo:

WCAG 1.1.1: alt text missing
WCAG 1.4.1: redundant group encoding (color only)

Accessible

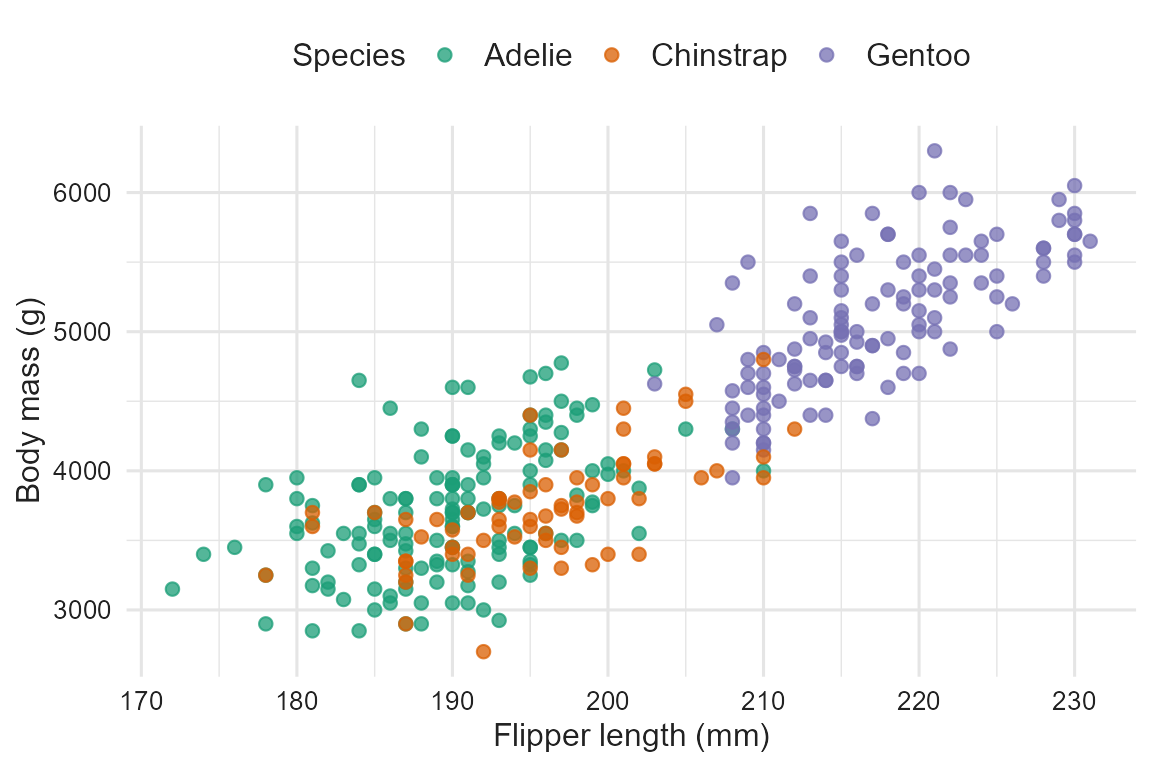

p_a11y <- ggplot(penguins, aes(flipper_length_mm, body_mass_g, color = species)) +
  geom_point(size = 2, alpha = 0.75) +
  theme_a11y() +
  scale_color_a11y("dark2_8") +
  labs(x = "Flipper length (mm)", y = "Body mass (g)", color = "Species") +
  theme(legend.position = "top")
p_a11y <- a11y_alt_text(p_a11y,
  "Scatter of penguin body mass vs flipper length by species; Gentoo cluster at long flippers and high body mass.")
p_a11y

Three accessibility wins from a few extra lines: scale_color_a11y("dark2_8") swaps in WCAG-tagged colors that clear 3:1 on white (Success Criterion 1.4.11), theme_a11y() applies the recommended font sizes and axis styling (Success Criterion 1.4.4), and a11y_alt_text() attaches the screen-reader description (Success Criterion 1.1.1). Color is still the only group cue, so the audit honestly flags 1.4.1 as todo — when shape variety would hurt readability, add direct cluster labels or facet by species to clear it.

Audit again

audit_a <- a11y_audit_chart(p_a11y)
cat(a11y_audit_summary(audit_a))
#> 1 to do, 1 ok, 4 already handled.
dt_show(a11y_audit_actionable(audit_a))

Alt text and text-size checks come back as ok; 1.4.1 stays todo by design (see the note above).

WCAG rubric

a11y_rubric() is the per-criterion reference: name, level, threshold, and the a11yviz function that addresses each. Same criterion column as a11y_audit(), so the two join cleanly.

dt_show(a11y_rubric())

Accessible CSS

a11y_css() returns the path to a stylesheet that handles dark-mode tooltips, keyboard focus rings, table styling, and responsive layout. a11y_css("shiny") also returns the path to the Shiny add-on with skip-link, reduced-motion, and high-contrast rules.

basename(a11y_css())
#> [1] "a11yviz.css"

Playground

run_app() launches a local Shiny playground (mirrors the Python a11yviz.run_app()). Two tabs compare a baseline ggplot chart against the accessible version with paired audit tables; toggle between WCAG AA and AAA in the sidebar. Requires shiny, bslib, and DT.

run_app()

See the function reference for the full API.

References

Crameri, F., Shephard, G. E., & Heron, P. J. (2020). The misuse of colour in science communication. Nature Communications, 11, 5444.
Nuñez, J. R., Anderton, C. R., & Renslow, R. S. (2018). Optimizing colormaps with consideration for color vision deficiency to enable accurate interpretation of scientific data. PLoS ONE, 13(7), e0199239.
WCAG 2.1 specification — pass any criterion value to a11y_wcag_url() for the deep link.
ADA web guidance
